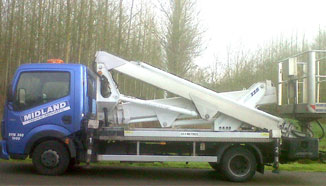

Multitel MX225
Truck Mounted Telescopic Access Platform
Specification
| Maximum working height: | 22.5m |
| Maximum platform height: | 20.5m |
| Max. working outreach: | 8.5m/10.0m |
| Turret rotation: | 400° |
| Cage Rotation: | 90° + 90° |
| Safe Working Load: | 200kg/120kg |
| Working Width: | 2.3m inline jacking |
| Transport Height | 2.58m |
| Transport Length | 6.35m |
| Max GVW: | 3.5t |
Working Envelope
Dimensions
If you would like more information on the Multitel MX225 Truck Mounted Telescopic Access Platform, please call 0116 360 1000.
